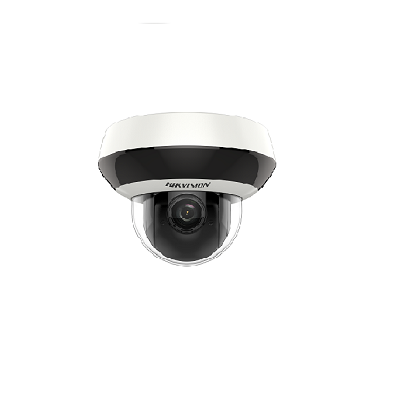

DS-2DE2A204IW-DE3(2.8-12MM)(C) 2MP 4× IR Network PTZ Camera

Mã SP: DS-2DE2A204IW-DE3(2.8-12MM)(C)

(Chưa có đánh giá)

Liên hệ

- 1/3″ progressive scan CMOS
- Up to 1920 × 1080@30fps resolution
- Min. illumination:
- Color: 0.005 Lux @(F1.6, AGC ON)
- B/W: 0.001 Lux @(F1.6, AGC ON) 0 Lux with IR
- 4× optical zoom, 16× digital zoom
- 120 dB WDR, 3D DNR, HLC, EIS, Regional Exposure, Regional Focus
- 12 VDC & PoE
- Up to 20 m IR distance
- IK10, IP66
- Support H.265+/H.265 video compression

Mua ngay Giao tận nơi hoặc tại cửa hàng

Tư vấn Chúng tôi gọi lại sau 5 phút Thêm vào giỏ Giao hàng nhanh chóng

Giao hàng toàn quốc

Miễn phí đổi hàng

Bảo hành 1 năm

Hỗ trợ tư vấn 24/7

Camera
Image Sensor:		1/3″ progressive scan CMOS
Effective Pixels:		1920(H)x1080(V)
Signal System:		PAL/NTSC
Minimum Illumination:		Color: 0.005 Lux @(F1.6, AGC ON) B/W: 0.001 Lux @(F1.6, AGC ON) 0 Lux with IR
White Balance:		Auto/Manual/ATW (Auto-Tracking White Balance)/Indoor/Outdoor/Fluorescent Lamp/Sodium Lamp
AGC:		Auto/Manual
HLC:		Support
WDR:		120dB
Shutter Time:		50Hz: 1/1 s to 1/30,000 s 60Hz: 1/1 s to 1/30,000 s
Day& Night:		ICR
Digital Zoom:		16×
Privacy Masking:		24 privacy masks programmable
Auto Focus:		Auto / Semi-automatic / Manual

Lens
Focal Length:		2.8 to 12mm, 4× optical zoom
Zoom Speed:		Approx. 2s (optical lens, wide-tele)
Angle of View:		Horizontal field of view: 109° to 34° (Wide-Tele) Vertical field of view: 57° to 19° (Wide-Tele) Diagonal field of view: 135° to 39° (Wide-Tele)
Minimum Working Distance:		10 to 1500mm (wide-tele)
Aperture Range:		F1.6 to F2.7

Pan & Tilt
Pan Range:		0° to 330°
Pan Speed:		Configurable, from 0.1°/s to 100°/s, Preset speed: 100°/s
Tilt Range:		Tilt: 0°~90°
Tilt Speed:		Configurable, from 0.1°/s to 100°/s Preset Speed: 100°/s
Proportional Zoom:		Rotation speed can be adjusted automatically according to zoom multiples
Number of Preset:		300
Power-off Memory:		Support

Infrared
IR irradiation distance:		20m
IR irradiation angle:		Adjustable by zoom

Input & Output
Audio Input:		1-ch audio input
Audio Output:		1-ch audio output

Network
Ethernet:		10Base -T, /100Base-TX, RJ45 Connector
Max.Image Resolution:		1920×1080
Main Stream:		50Hz: 25fps(1920×1080), 25fps(1280×960), 25fps (1280×720) 60Hz: 30fps(1920×1080), 30fps(1280×960), 30fps (1280×720)
Sub Stream:		50Hz: 25fps(704×576, 640×480,352×288); 60Hz: 30fps(704×480, 640×480,352×240)
Third Stream:		50Hz: 25fps (1280 × 720, 704 × 576, 640 × 480, 352 × 288) 60Hz: 30fps (1280 × 720, 704 × 480, 640 × 480, 352 × 240)
Video Compression:		Main Stream: H.265+/H.265/H.264+/H.264 Sub-Stream: H.265/H.264/MJPEG Third Stream: H.265/H.264/MJPEG
ROI encoding:		Support 2 areas with adjustable levels
Audio Compression:		G.711ulaw/G.711alaw/G.726/MP2L2/G.722
Audio Mode:		OFF/Audio input/Audio output
Protocols:		IPv4/IPv6, HTTP, HTTPS, 802.1x, Qos, FTP, SMTP, UPnP, SNMP, DNS, DDNS, NTP, RTSP, RTCP, RTP, TCP, UDP, IGMP, ICMP, DHCP, PPPoE, Bonjour
No. of Simultaneous Users:		Up to 20 users
Three-Stream:		Support
Mini SD Card:		Built-in memory card slot, support Micro SD/SDHC/SDXC, up to 256 GB
User/Host Level:		Up to 32 users, 3 levels: Administrator, Operator and User
Security Measures:		User Authentication (User ID and Password), Host Authentication (MAC address), HTTPS Encryption, IEEE 802.1x Port-Based Network Access control, IP address Filtering
Hik-Connect:		Support

General
Power Supply:		12 VDC & PoE
Power Consumption:		Max.: 12 W (Max. 3.9 W for IR)
Working Temperature/Humidity:		-20°C to 60°C (-4°F to 140°F)
Protection Level:		IP66 Standard, IK10, TVS 4000V Lightning Protection, Surge Protection and Voltage Transient Protection
Material:		Aluminum alloy, PC, PC+ABS
Dimensions:		Φ 130.7 mm × 101.7 mm (Φ 5.15″ × 4.00″)
Weight (approx.):		Approx. 0.53 kg (1.17 lb)
